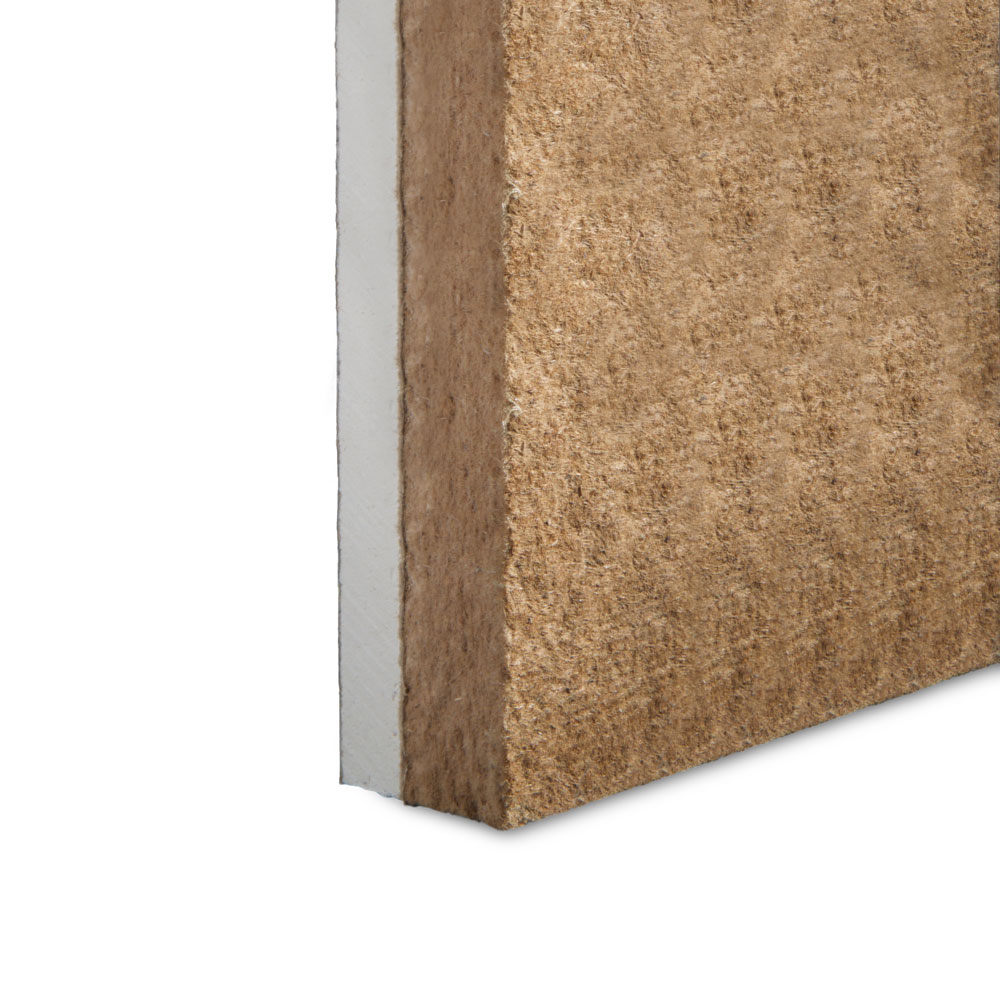

WOODGIPS soundproofing panel of 32 mm thickness and a mass per unit area of 16.5 kg/m2, CE marked according to the UNI EN 14190, obtained from a plaster coated SOUNDBLOCK board with thinned edges coupled to a wood fiber panel from 250 kg/m3 and 19 mm thick.
By virtue of its mass per unit area and mating with a wood fiber panel, WOODGIPS is used for the sound insulation of partition walls, false walls and false ceilings, and even when there is a simultaneous requirement to improve thermal insulation. Generally it is associated with the SOUNDBLOCK slab board laid in view. It is delivered in boards with the dimensions of 1.20 m x 2.00 m.
Unless otherwise indicated, the installation is done by adopting the techniques and equipment usually employed in works in ordinary plasterboard.
- Wall
- Ecofibra Panel
- Steel structure
- WOODGIPS
- Soundblock
- Skimming
- Paint
ADVANTAGES
- Board employed to increase both the thermal and acoustic insulation of existing partitions.
- High mass per unit area.
TECHNICAL DATA OF THE PRODUCT
| Superficial hardness | Resistance to longitudinal bending | Resistance to cross bending | Thermal conductivity λ | Water vapour resistance factor μ |
|---|---|---|---|---|
| < 15 mm (impronta della biglia lato cartongesso) |
550 N | 210 N | λ = 0,063 W/mK | µ = 7 |
| Code | Format | Dimensions | Thickness | Weight |
|---|---|---|---|---|
| L020112432 | pannel | 1,20 m x 2,0 m | 32 mm | 16,5 kg/m2 |
